Basic Information
- Manufacturer
- Alteon Networks
- Model
- ACEswitch 180+
- ╰ Also known as
-
700112
180-Plus
Alteon WebSystems Alteon 180-Plus - Device Type
- Switch
- Release Year
- 1999
Rack Mounting
- Rackmountable
- Yes
- Rack Units
- 2U
Power
- Power Supply
- Internal

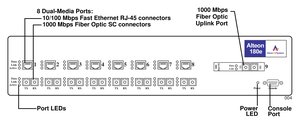

Fixed Interfaces
Data Interfaces
| Qty | Speed | Protocol / Signaling | Interface | Notes |
|---|---|---|---|---|
| 8x | 100 Mbps | Ethernet | RJ-45 (8P8C) | — |
| 8x | 1 Gbps | Ethernet | SC | — |
| 1x | 1 Gbps | Ethernet | SC | Uplink port |
Management Interfaces
| Qty | Type | Interface | Pinout | Notes |
|---|---|---|---|---|
| 1x | Console | DB-9 (DE-9) | — | — |
Software & Docs
| Name | Type | Description |
|---|---|---|
| ACEswitch 18X Hardware Installation Guide | Documentation | — |
Submitted by TheSerialPort on Sept. 19, 2026
