Basic Information
- Manufacturer
- Alteon Networks
- Model
- ACEdirector 3
- ╰ Also known as
-
700106
AD3
Nortel Networks ACEdirector 3 - Device Type
- Load Balancer
- Release Year
- 2000
Rack Mounting
- Rackmountable
- Yes
- Rack Units
- 2U

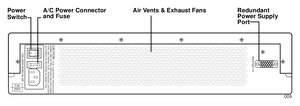

Power
- Power Supply
- Internal
Fixed Interfaces
Data Interfaces
| Qty | Speed | Protocol / Signaling | Interface | Notes |
|---|---|---|---|---|
| 8x | 100 Mbps | Ethernet | RJ-45 (8P8C) | — |
| 1x | 1 Gbps | Ethernet | SC | — |
Management Interfaces
| Qty | Type | Interface | Pinout | Notes |
|---|---|---|---|---|
| 1x | Console | DB-9 (DE-9) | — | — |
Software & Docs
| Name | Type | Description |
|---|---|---|
| ACEdirector 3 Installation and User's Guide | Documentation | — |
| AD3/180e Firmware | Firmware | Version 10.0.33.4 TFTP images for ACEdirector 3 and ACEswitch 180e |
Submitted by TheSerialPort on Sept. 19, 2026
