Basic Information
- Manufacturer
- Compaq
- Model
- SW5450
- ╰ Also known as
-
Extreme Networks Summit 48

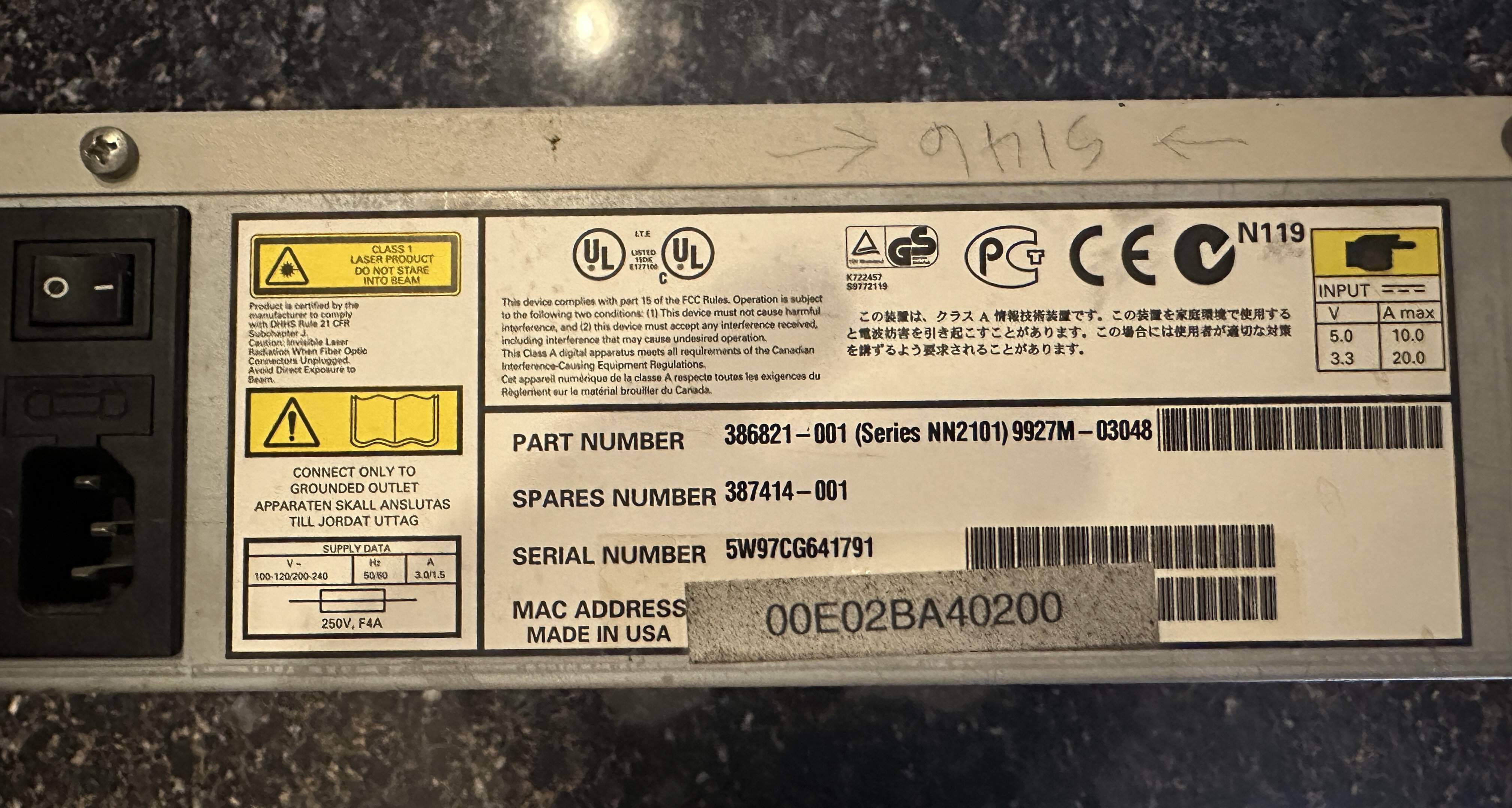

386821-001 - Device Type
- Switch
- Release Year
- 1998
Rack Mounting
- Rackmountable
- Yes
- Rack Units
- 2U
Power
- Power Supply
- Internal

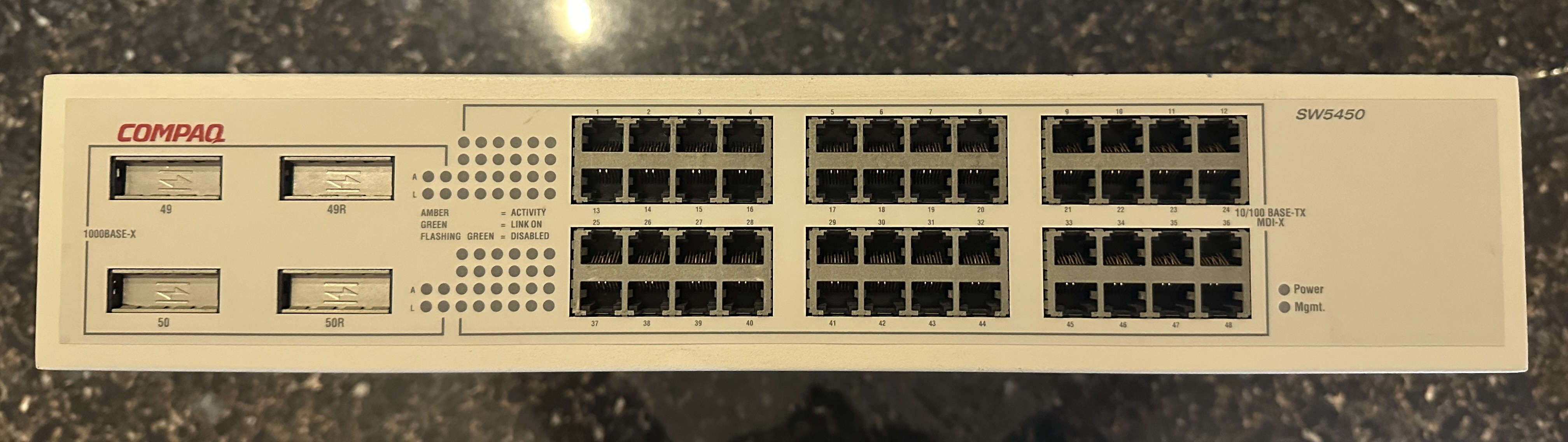

Fixed Interfaces
Data Interfaces
| Qty | Speed | Protocol / Signaling | Interface | Notes |
|---|---|---|---|---|
| 48x | 100 Mbps | Ethernet | RJ-45 (8P8C) | — |
| 2x | 1 Gbps | Ethernet | GBIC | — |
| 2x | 1 Gbps | Ethernet | GBIC | Redundant ports (49R, 50R) |
Management Interfaces
| Qty | Type | Interface | Pinout | Notes |
|---|---|---|---|---|
| 1x | Console | DB-9 (DE-9) | — | 9600 8-n-1 Null Modem cable/adapter required |
Notes
Sep 15, 2026 1:00 PM · pizzdahutt
Compaq in name only. Extreme Networks Summit 48 inside, runs ExtremeWare and identifies itself as Summit48.
Was not able to get it to recognize Cisco RJ-45 GBIC modules.
Default login is username: admin with no password.

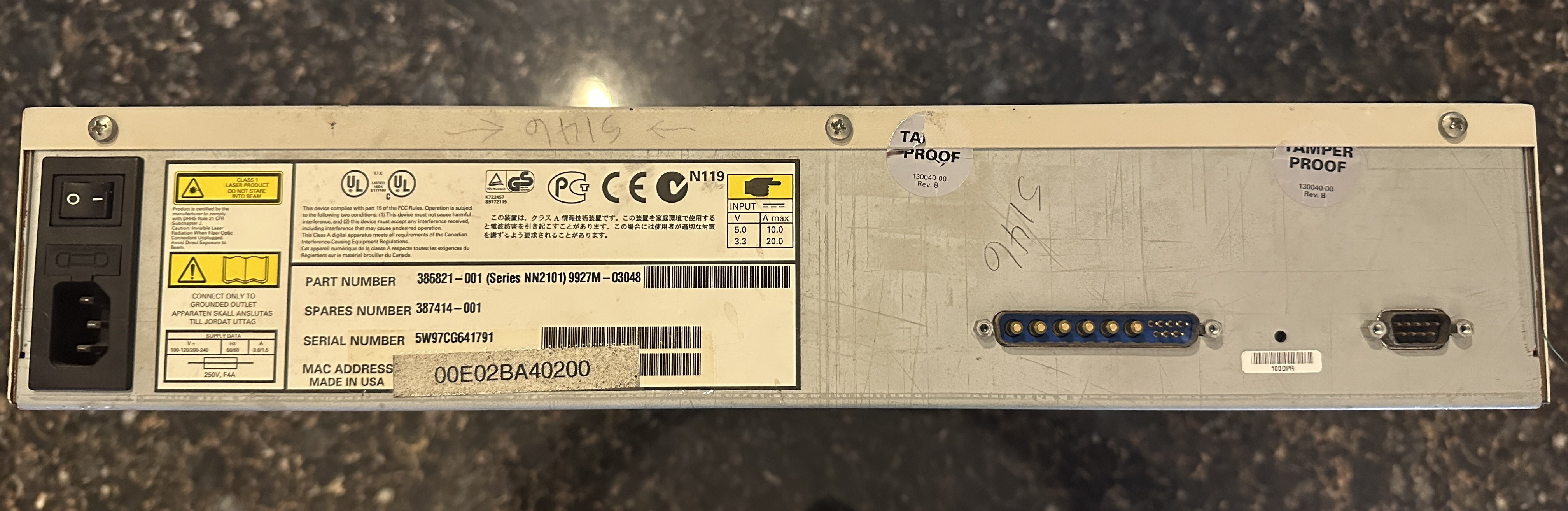

The small button on the back near the console port might be to switch between needing a null modem cable and a straight through? Have not experimented yet.
Submitted by pizzdahutt on Sept. 15, 2026
