Basic Information
- Manufacturer
- Wellfleet Communications
- Model
- Access Node (Ethernet & Token Ring)
- ╰ Also known as
-
AN
Bay Networks BayStack Access Node - Device Type
- Router
- Release Year
- 1994
Rack Mounting
- Rackmountable
- Yes
- Rack Units
- 2U
Power
- Power Supply
- Internal
Expansion Slots
| Qty | Form Factor(s) |
|---|---|
| 1x | AN/ANH |
| 1x | AN/ANH DCM |

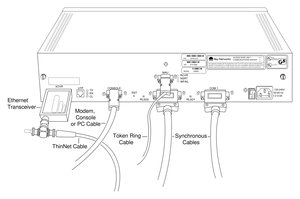

Fixed Interfaces
Data Interfaces
| Qty | Speed | Protocol / Signaling | Interface | Notes |
|---|---|---|---|---|
| 1x | 16 Mbps | Token Ring | DB-9 (DE-9) | — |
| 1x | 10 Mbps | Ethernet | DA-15RJ-45 (8P8C) | — |
| 2x | 2.048 Mbps | TIA-232 (RS-232)TIA-422 (RS-422)TIA-449 (RS-449)V.35X.21 | HD44 | — |
Management Interfaces
| Qty | Type | Interface | Pinout | Notes |
|---|---|---|---|---|
| 1x | Console | DB-9 (DE-9) | — | — |
| 1x | Memory | PC Card | — | — |
Software & Docs
| Name | Type | Description |
|---|---|---|
| AN and ANH Systems | Documentation | Installation and Operation manual |
| Installing an Adapter Module | Documentation | AN / ANH models |
Compatible Modules
AN/ANH DCM
Management
Submitted by TheSerialPort on Sept. 13, 2026
