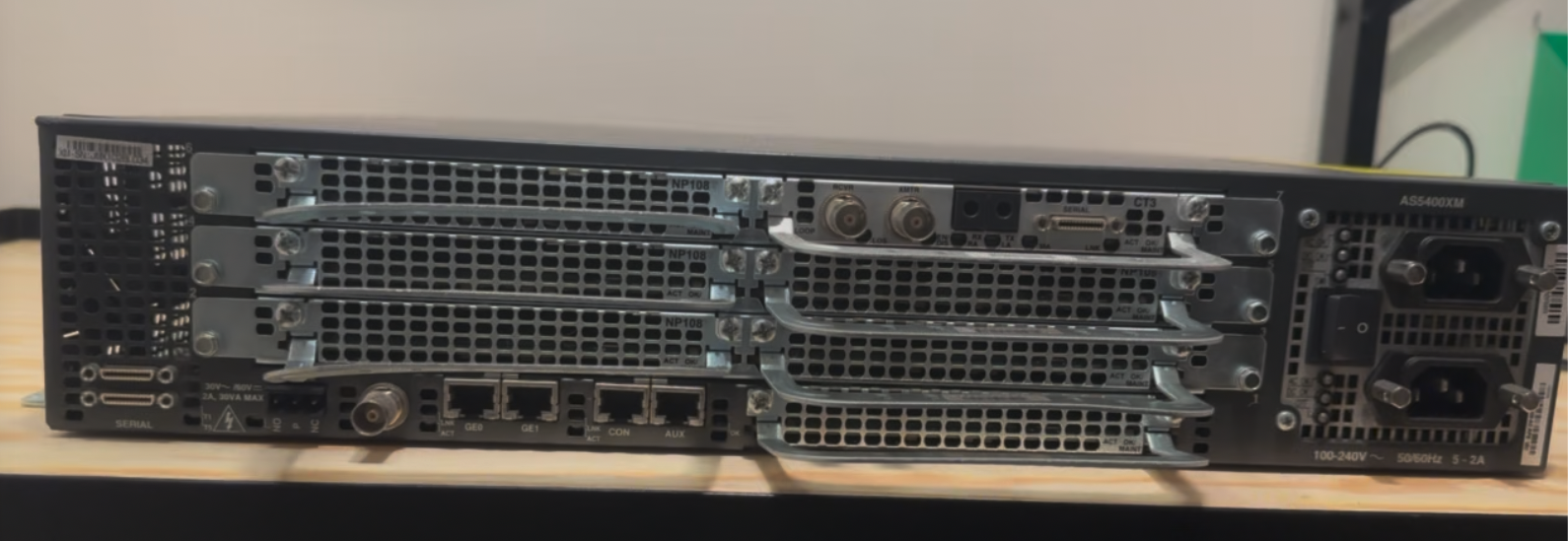

Cisco Systems AS5400XM

Access Server

AS5400XM
AS5400XM

Basic Information

Manufacturer
Cisco Systems
Model
AS5400XM
Device Type
Access Server

Rack Mounting

Rackmountable
Yes
Rack Units
2U

Power

Power Supply
Internal

Expansion Slots

Qty Form Factor(s)
7x AS5350/5400 Feature Card

Fixed Interfaces

Data Interfaces

Qty Speed Protocol / Signaling Interface Notes
2x 8 Mbps TIA-232 (RS-232)TIA-449 (RS-449)TIA-530 (RS-530)V.35X.21 Proprietary
12-in-1 connector serial ports
2x 1 Gbps Ethernet RJ-45 (8P8C)
—

Management Interfaces

Qty Type Interface Pinout Notes
1x Console RJ-45 (8P8C) —
—
1x Monitoring Euroblock (Phoenix) —
Alarm relay NO/NC
1x Remote RJ-45 (8P8C) —
AUX
1x Timing BNC —
Building Integrated Timing Supply (BITS)
