Basic Information
- Manufacturer
- 3Com
- Model

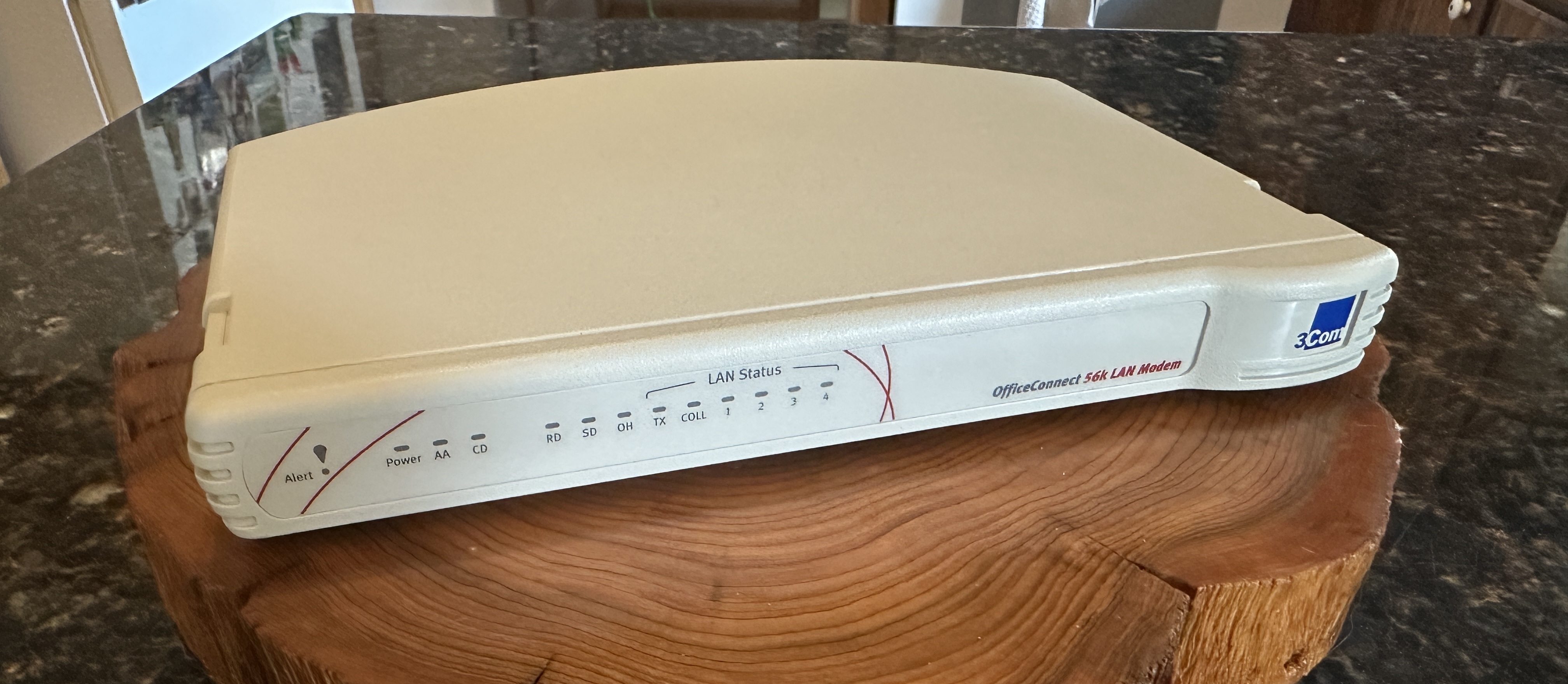

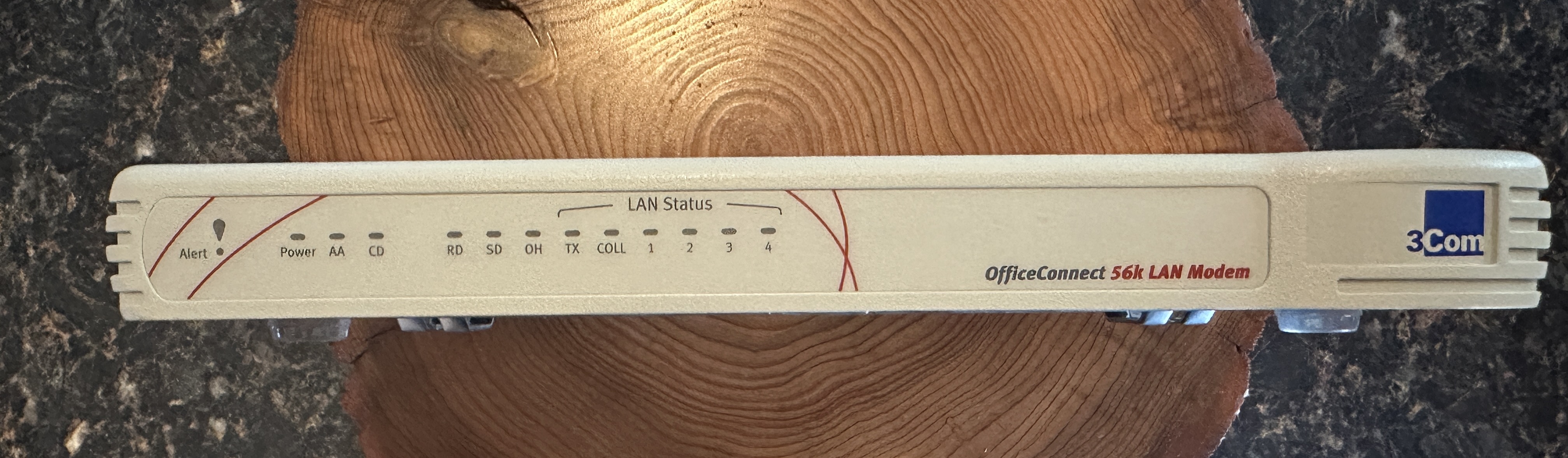

- OfficeConnect 56K LAN Modem
- ╰ Also known as

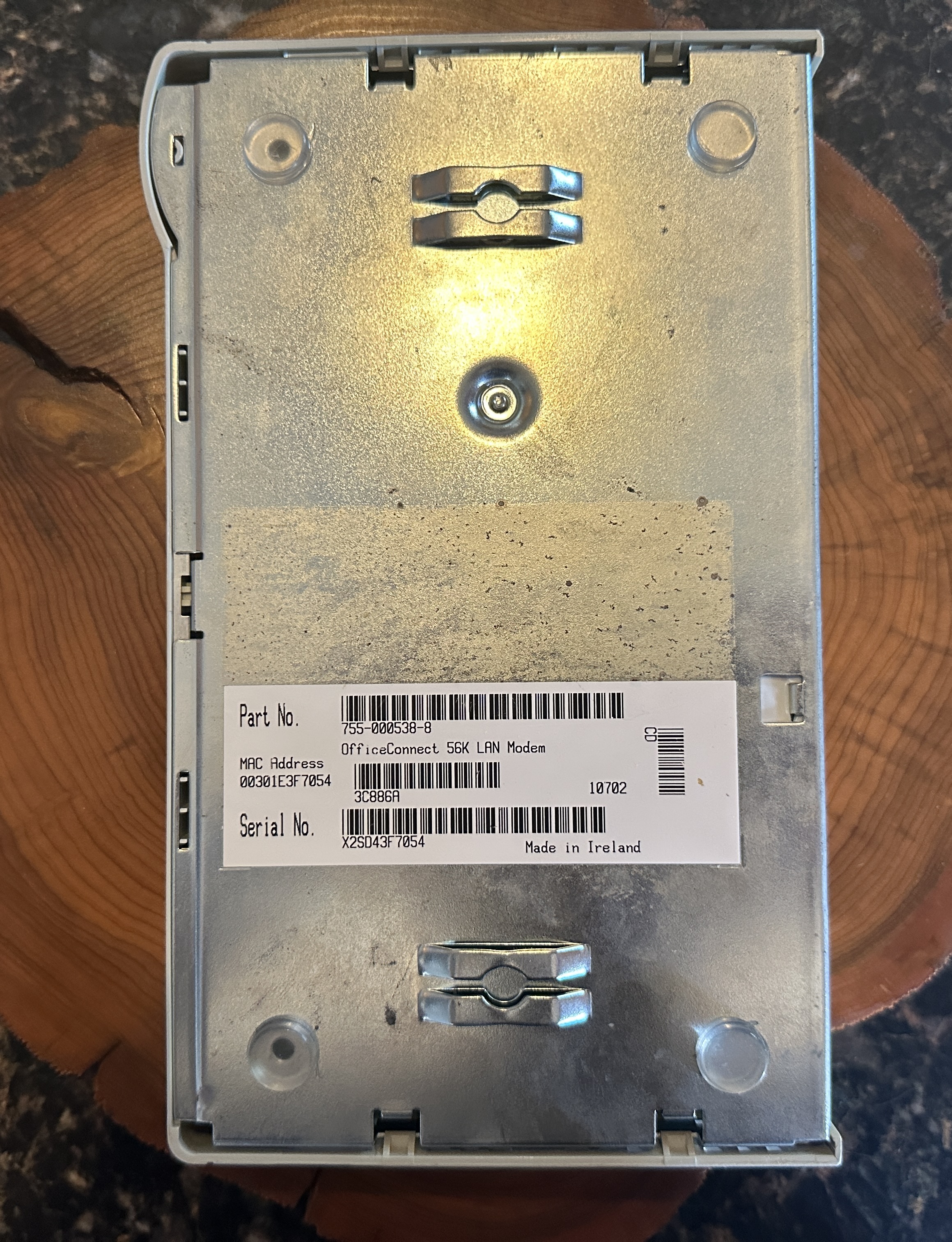

- 3C886A
- Device Type
- Router
Power
- Power Supply
- External

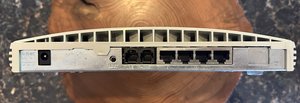

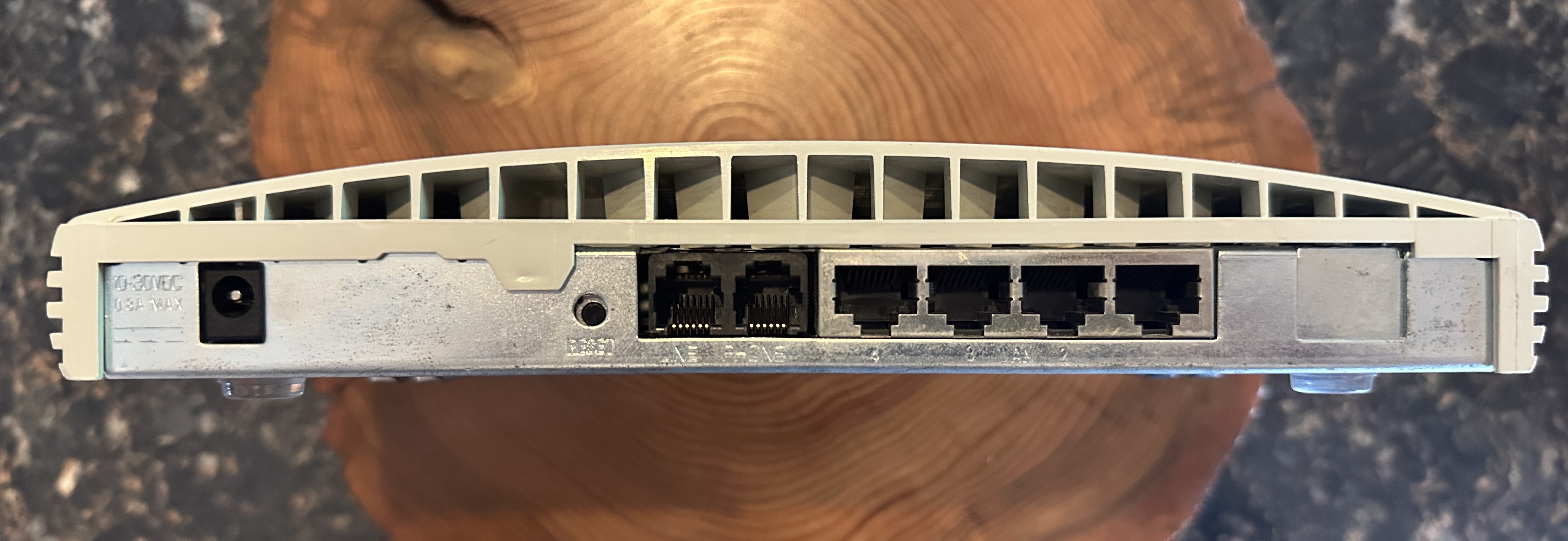

Fixed Interfaces
Data Interfaces
| Qty | Speed | Protocol / Signaling | Interface | Notes |
|---|---|---|---|---|
| 1x | 56 kbps | FXO | RJ-11 (6P4C) | — |
| 4x | 10 Mbps | Ethernet | RJ-45 (8P8C) | — |
| 1x | — | FXO | RJ-11 (6P4C) | Phone port |
Software & Docs
| Name | Type | Description |
|---|---|---|
| 56K LAN Modem User Manual | Documentation | — |
Notes
Aug 28, 2026 8:11 PM · pizzdahutt
Accepts 10-30v DC Input
Modem can connect to an ISP or to another 56k LAN Modem/Dual 56k LAN Modem to extend the LAN. The routers have to be set as Site A, B, or C and can't be the same. Site A gets 192.168.1.0, B is 192.168.2.0, C is 192.168.3.0.
You can connect a client remotely but the client is put onto their own subnet with no access to network resources, only for administration.
Default IP is 192.168.1.1
Submitted by pizzdahutt on Aug. 28, 2026
