Basic Information
- Manufacturer
- 3Com
- Model
- OfficeConnect Dual 56K LAN Modem
- ╰ Also known as
- 3C888
- Device Type
- Router
- Release Year
- 1998
Power
- Power Supply
- External
Fixed Interfaces

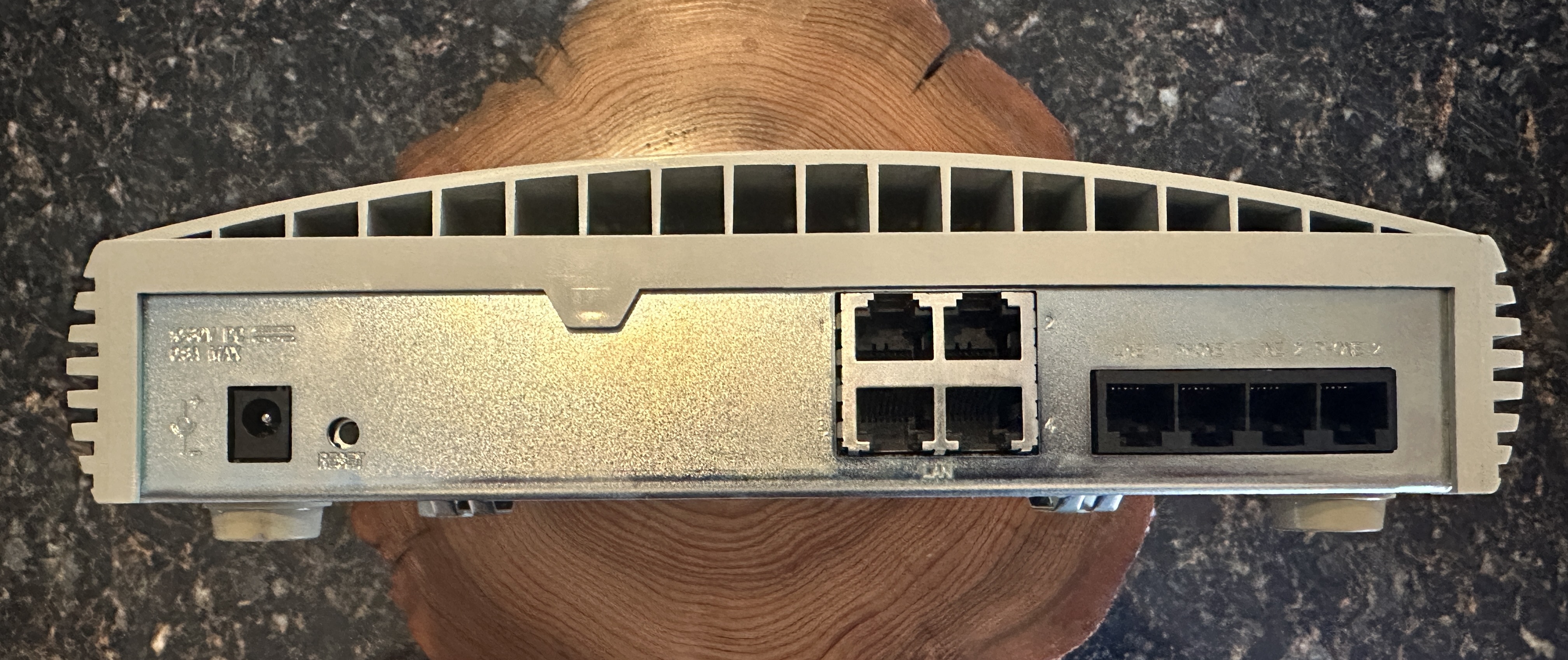

Data Interfaces
| Qty | Speed | Protocol / Signaling | Interface | Notes |
|---|---|---|---|---|
| 2x | 56 kbps | FXO | RJ-11 (6P4C) | — |
| 4x | 10 Mbps | Ethernet | RJ-45 (8P8C) | — |
| 2x | — | FXO | RJ-11 (6P4C) | Phone ports |
Software & Docs
| Name | Type | Description |
|---|---|---|
| Dual 56K LAN Modem User Manual | Documentation | — |
Notes
Aug 28, 2026 7:40 PM · pizzdahutt
Accepts 10-30v DC Input
Can make simultaneous connections through both modems - 2 different ISPs, 1 to an ISP, 1 to a remote LAN, 2 different remote LANs, etc..
Can make multilink connections - both to an ISP or to another Dual 56k LAN Modem
You can remotely connect a client to one of the modems, but it puts the client on their own subnet with no access to network resources, only good for administration
Submitted by pizzdahutt on Aug. 28, 2026
