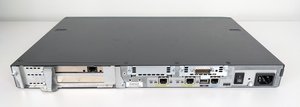

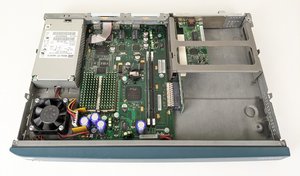

Cisco Systems PIX 515E

Firewall

Basic Information

Manufacturer: Cisco Systems
Model: PIX 515E
Device Type: Firewall
Release Year: 2002

Rack Mounting

Rackmountable: Yes
Rack Units: 1U

Power

Power Supply: Internal

Expansion Slots

Qty	Form Factor(s)
2x	PCI (32-bit)

Fixed Interfaces

Data Interfaces

Qty	Speed	Protocol / Signaling	Interface	Notes
2x	100 Mbps	Ethernet	RJ-45 (8P8C)	—more…

Management Interfaces

Qty	Type	Interface	Pinout	Notes
1x	—	USB (Type-A)	—	No functionmore…
1x	Console	RJ-45 (8P8C)		—more…
Console Pinout (RJ-45 (8P8C)) \| RJ-45 Pin \| Signal \| \|-----------\|--------\| \| 1 \| CTS \| \| 2 \| DSR \| \| 3 \| RxD \| \| 4 \| GND \| \| 5 \| GND \| \| 6 \| TxD \| \| 7 \| DTR \| \| 8 \| RTS \|
1x	Failover	DA-15		—more…
Failover Pinout (DA-15) \| Primary Pin \| Signal Name \| Dir \| Secondary Pin \| Signal Name \| \|-------------\|----------------------\|:---:\|---------------\|----------------------\| \| 1 \| Power Detect \| <-> \| 10 \| Power Source \| \| 2 \| Rx Data \| <-> \| 3 \| Tx Data \| \| 3 \| Tx Data \| <-> \| 2 \| Rx Data \| \| 4 \| Plug Driver \| <-> \| 6 \| Loopback (Internal) \| \| 5 \| Ground \| <-> \| 5 \| Ground \| \| 6 \| Loopback (Internal) \| <-> \| 4 \| Plug Driver \| \| 9 \| Foreign Plug Detect \| <-> \| 14 \| Loopback (Internal) \| \| 10 \| Power Source \| <-> \| 1 \| Power Detect \| \| 12 \| Primary Select \| <-> \| 12 \| Secondary Select \| \| 14 \| Loopback (Internal) \| <-> \| 9 \| Foreign Plug Detect \|
